Product demo
Routiv in action
From overview to AI analysis: monitoring, dynamic topology, secure access, notes, backups and fleet actions. Click a screenshot to enlarge.
Hôtel Atlas — Brussels

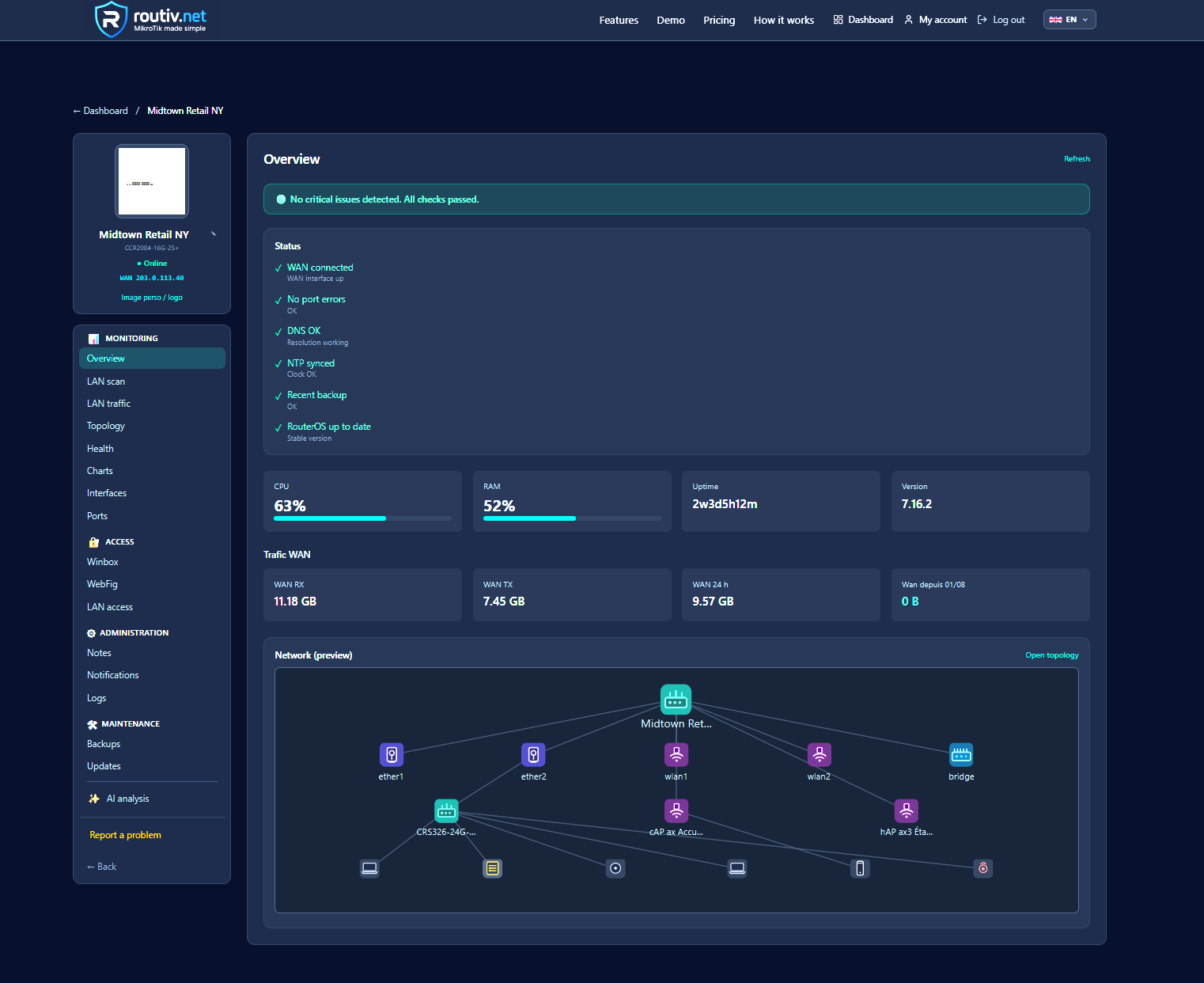

Overview
Site health at a glance: WAN / DNS / NTP / backup / RouterOS checks, CPU & RAM, WAN traffic, uptime, version — plus a live network preview with dynamic topology.
- ✓Health banner
- ✓WAN, ports, DNS, NTP, backup, ROS checks
- ✓CPU, RAM, uptime, RouterOS version
- ✓WAN traffic (RX/TX, 24h, month-to-date)
- ✓Dynamic network preview
Hôtel Atlas — Brussels

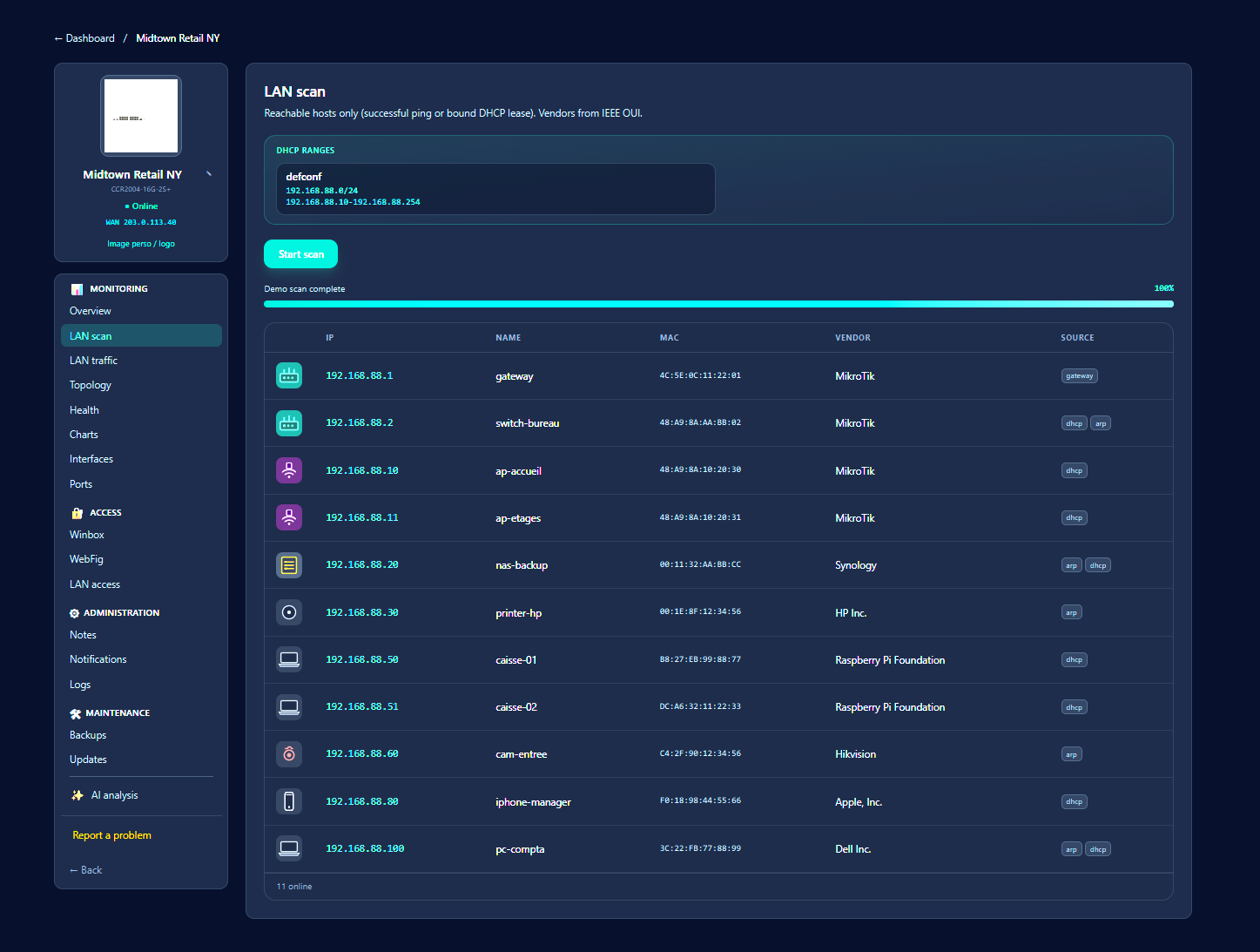

LAN scan
Discover reachable hosts (ping or bound DHCP), IEEE OUI vendors, DHCP ranges and device types (AP, NAS, POS, camera…).
- ✓Detected DHCP ranges
- ✓IP · name · MAC · vendor
- ✓Sources: gateway / dhcp / arp
- ✓Icons by device type
- ✓On-demand scan
Hôtel Atlas — Brussels

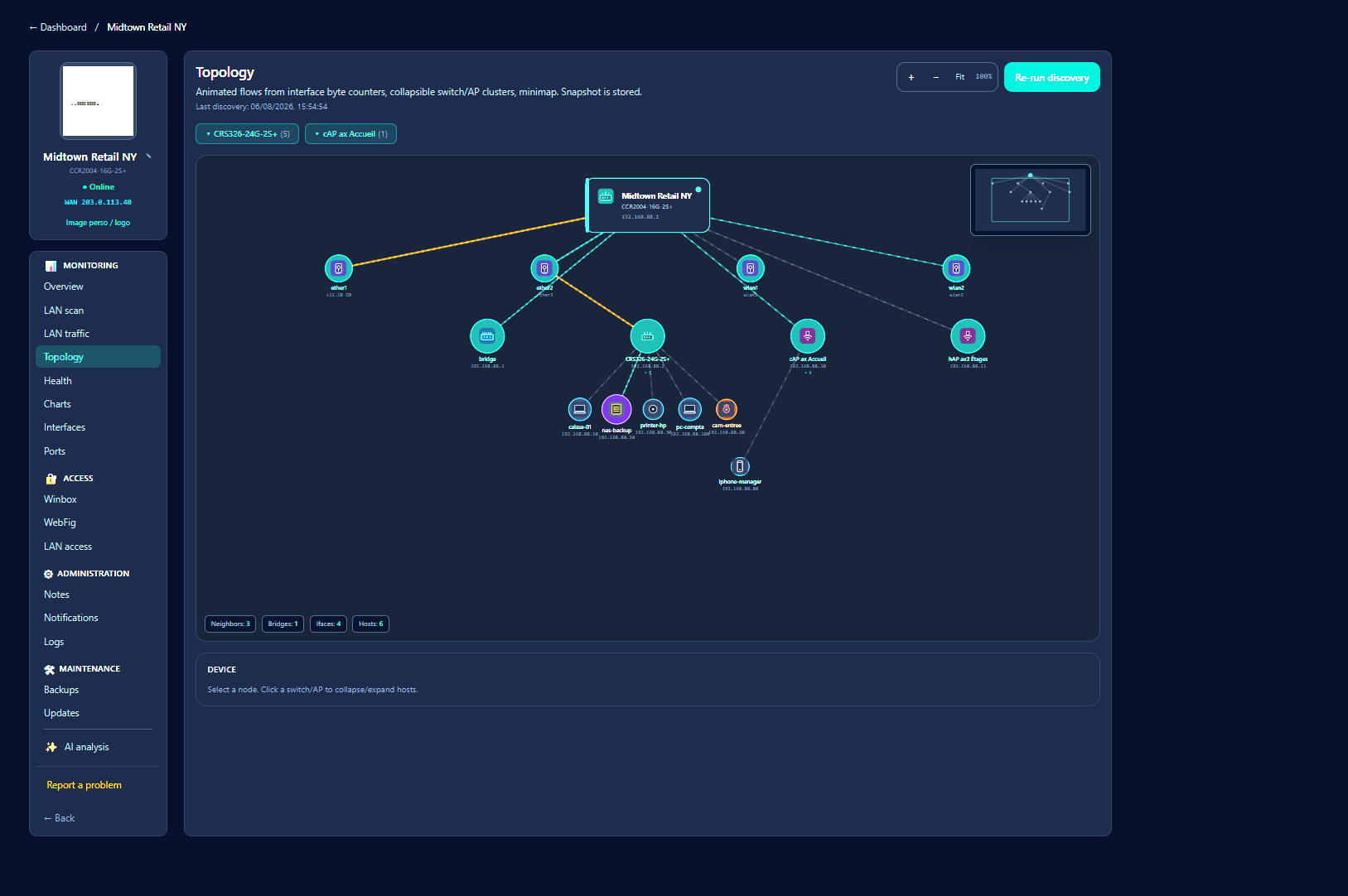

Dynamic topology
Animated network map: traffic flows from interface counters, collapsible switch/AP clusters, minimap, stored snapshot. Topology is dynamic — re-run discovery anytime.
- ✓Dynamic topology (not a static diagram)
- ✓Animated traffic flows
- ✓LLDP neighbors, bridges, interfaces, hosts
- ✓Collapsible switch / AP clusters
- ✓Minimap + zoom + rediscovery
Hôtel Atlas — Brussels

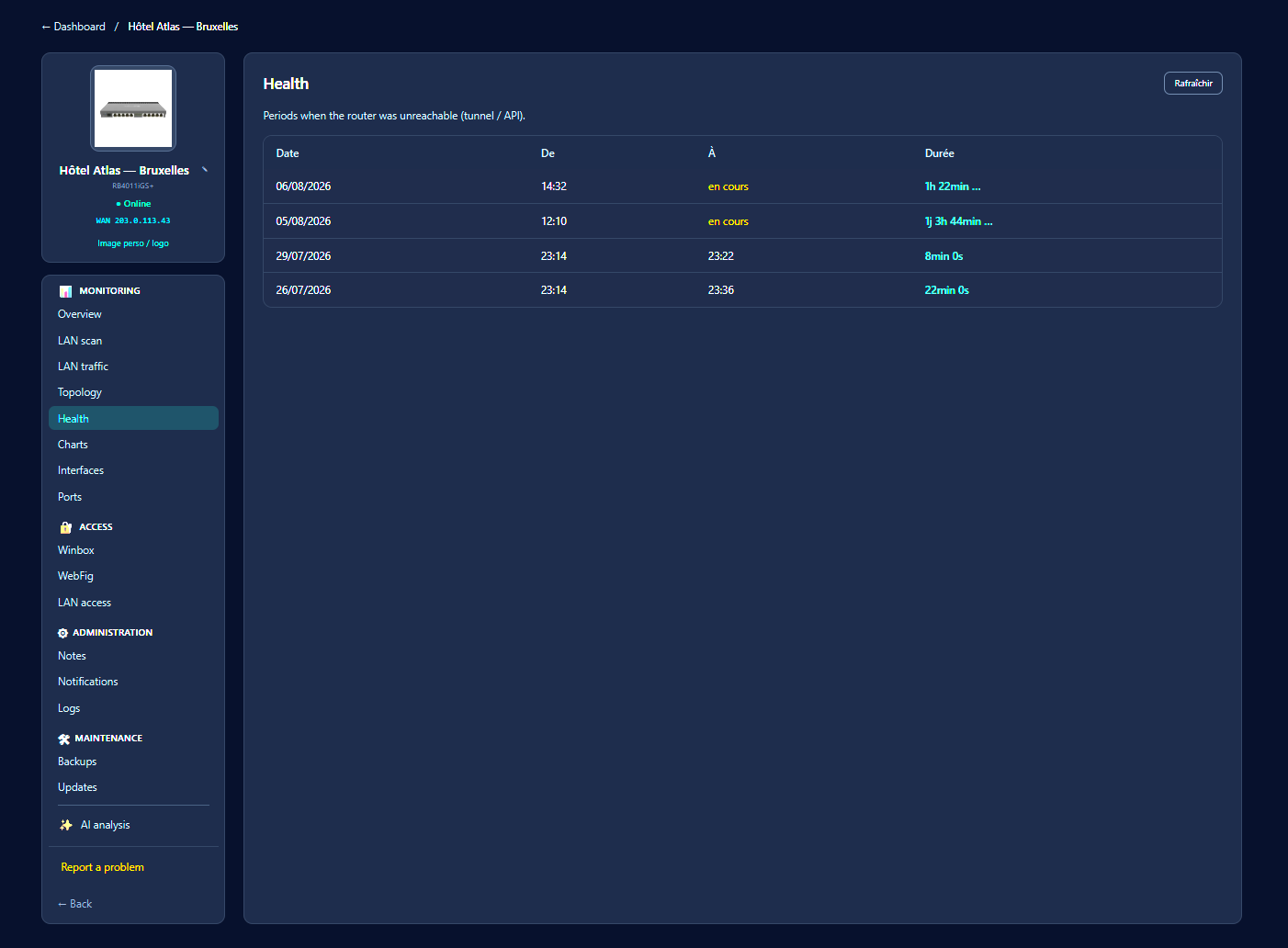

Availability (Health)
History of periods when the router was unreachable (WireGuard tunnel / API), with date, time range and duration.
- ✓Tunnel / API outages
- ✓Date · from · to · duration
- ✓Browsable timeline
- ✓Useful for SLA and support
Hôtel Atlas — Brussels

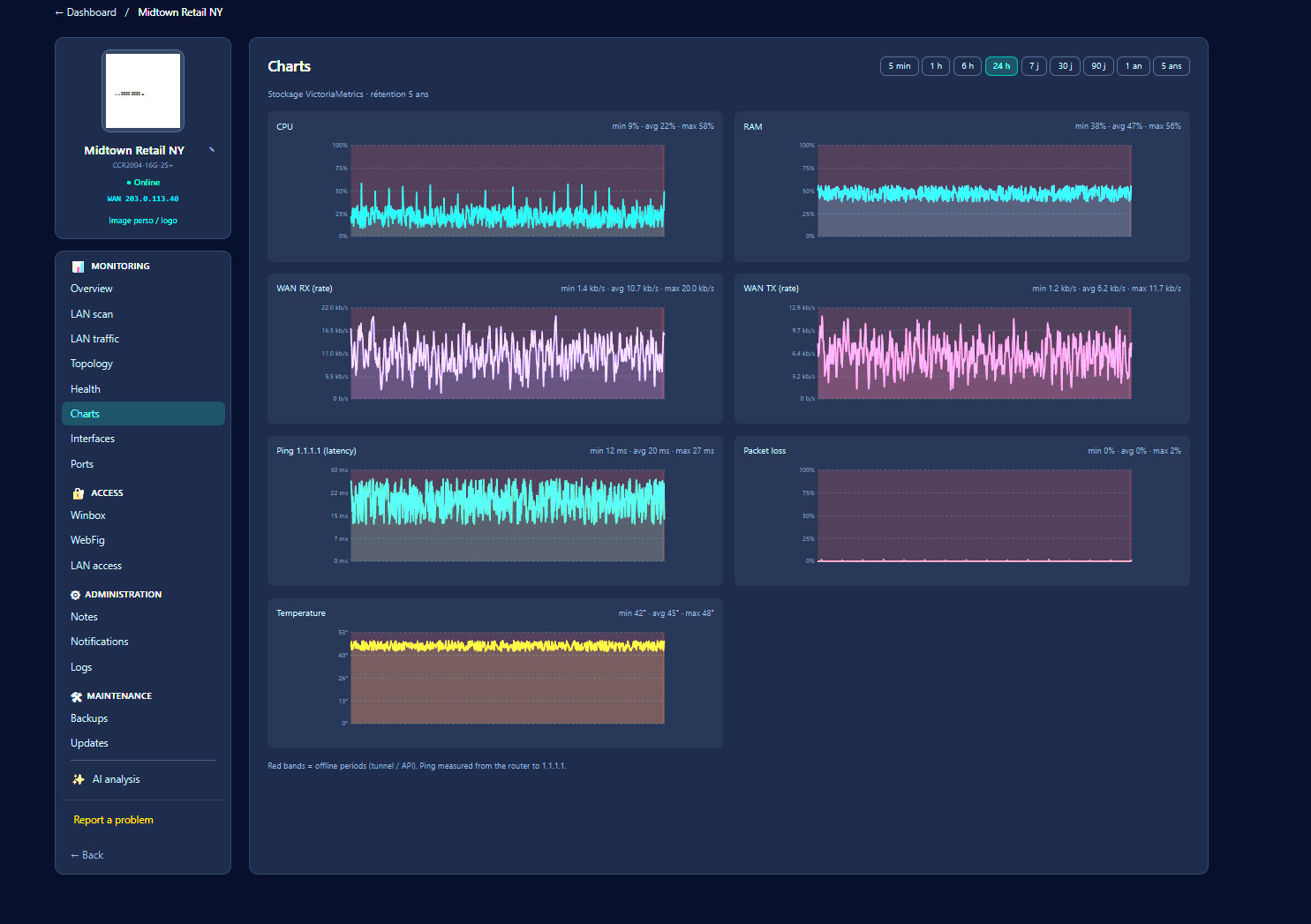

Charts
VictoriaMetrics history (up to 5-year retention): CPU, RAM, WAN rates, ping 1.1.1.1 latency, packet loss — ranges from 5 min to 5 years, min / avg / max.
- ✓CPU & RAM (min / avg / max)
- ✓WAN RX / TX rates
- ✓Ping 1.1.1.1 & packet loss
- ✓Red bands = offline periods
- ✓Ranges: 5 min → 5 years
Hôtel Atlas — Brussels

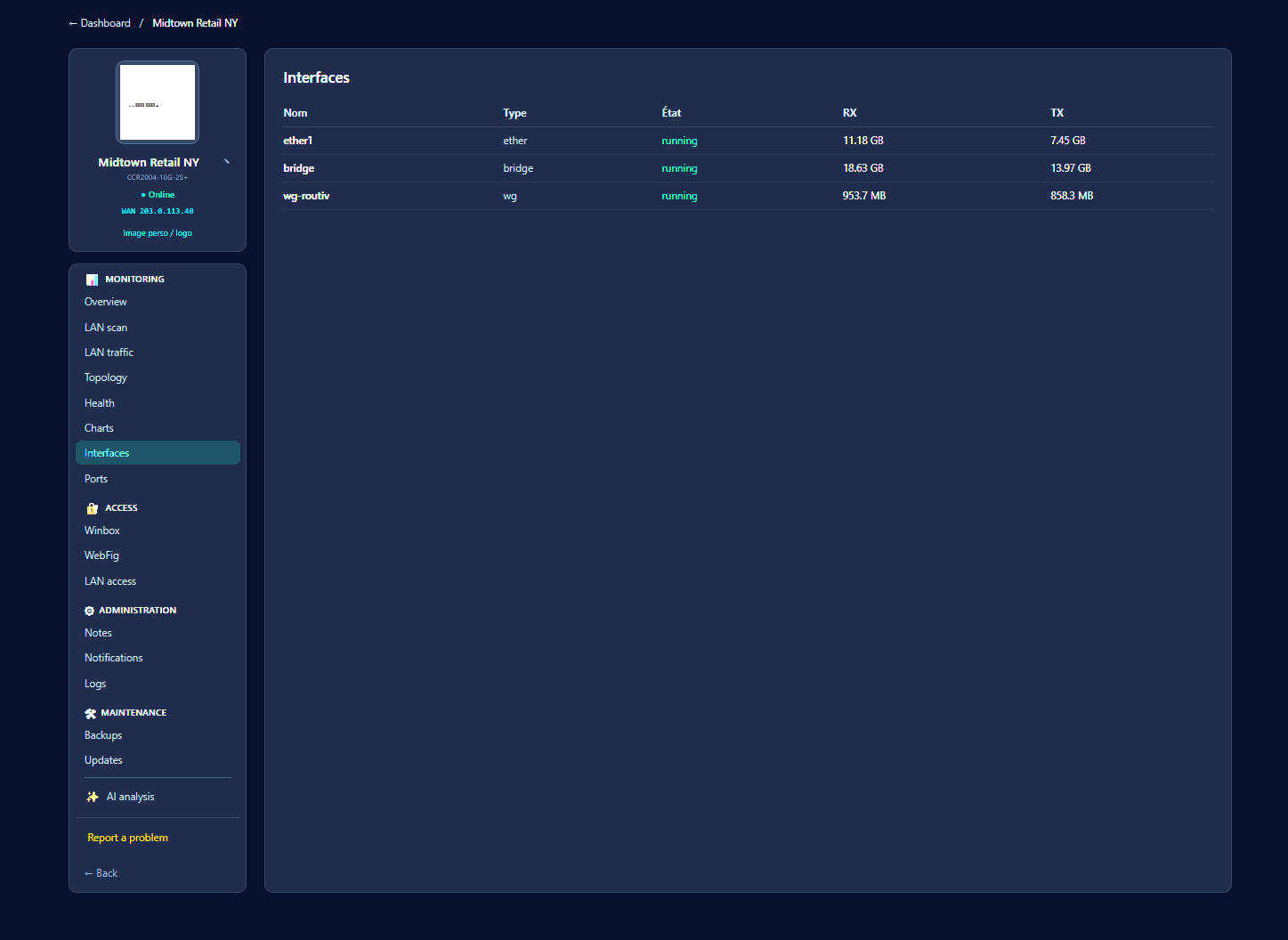

Interfaces
RouterOS interfaces list: type, running state, cumulative RX/TX counters (ether, bridge, WireGuard…).
- ✓Name · type · state
- ✓Cumulative RX / TX
- ✓ether, bridge, wg…
- ✓Clear diagnostic view
Hôtel Atlas — Brussels

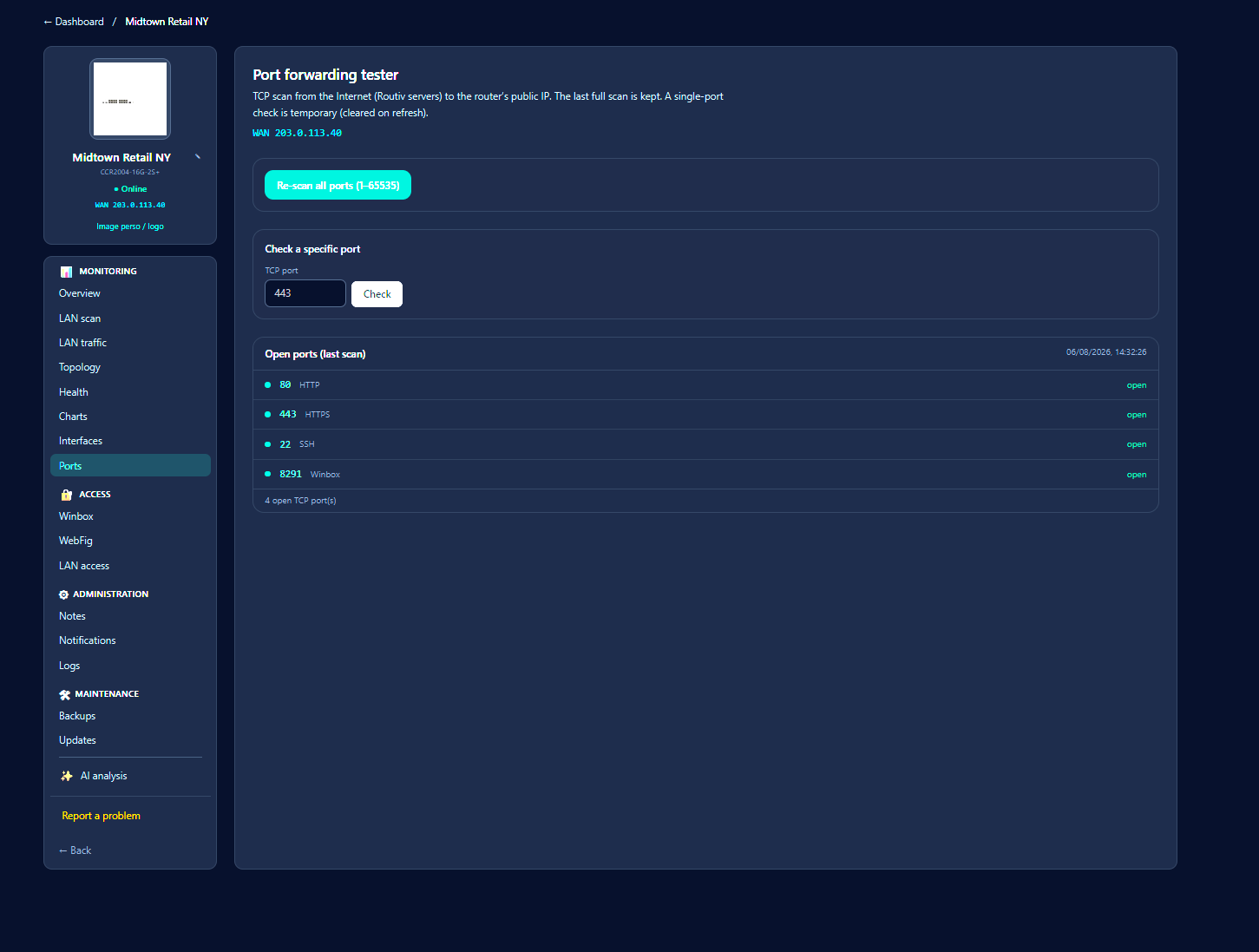

Port-forward scan
Test ports open from the Internet to the router’s public IP: full 1–65535 scan, single-port check, last-scan history (e.g. 80/443).
- ✓TCP scan from Routiv cloud
- ✓Re-scan 1–65535
- ✓Single-port check
- ✓Open ports list (HTTP/HTTPS…)
- ✓No client-side port for the tunnel
Hôtel Atlas — Brussels

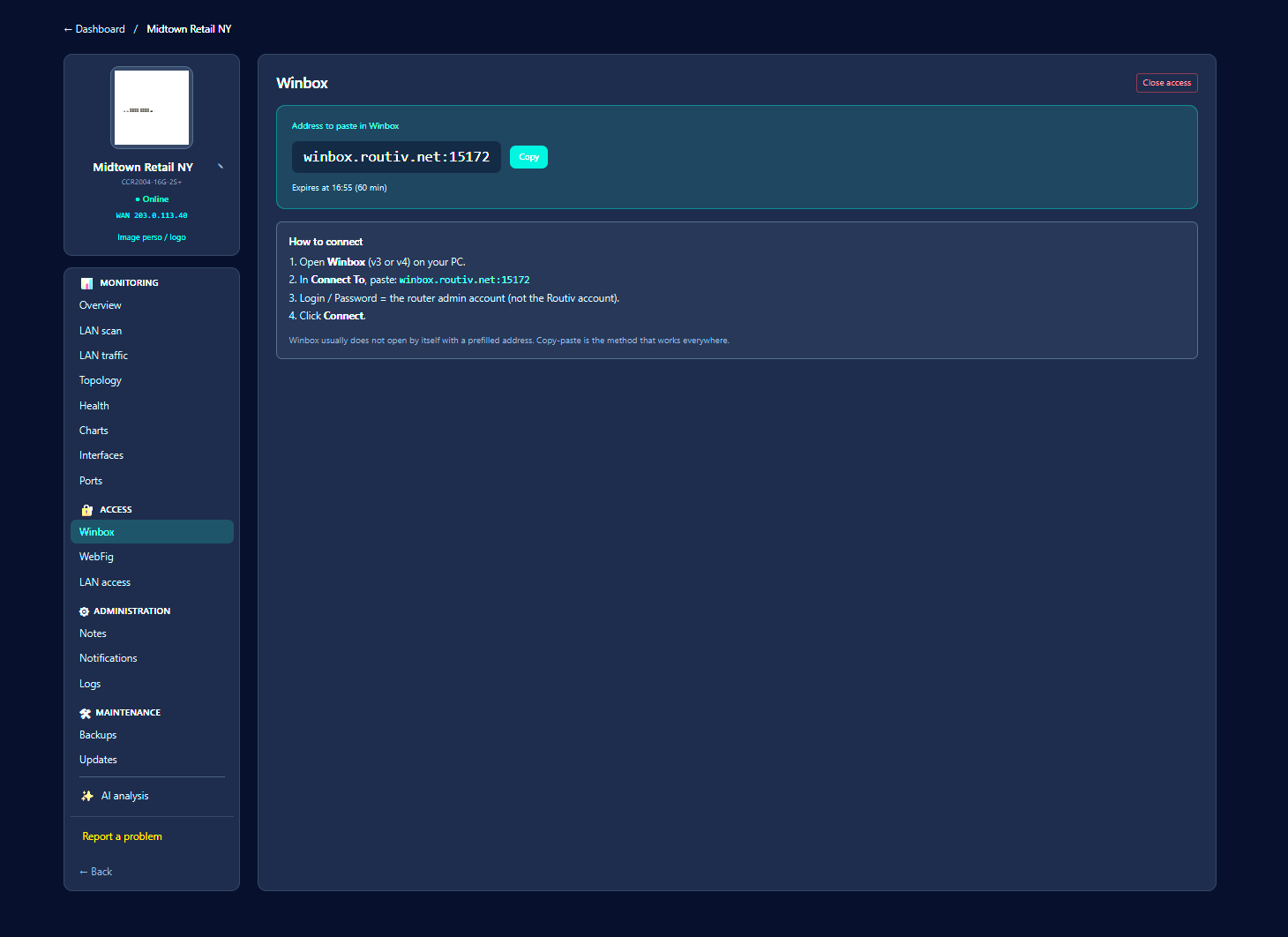

Secure Winbox
Temporary access: winbox.routiv.net:port to paste in Connect To. Routiv tunnel, limited duration (30 min–6 h), login = router admin account.
- ✓No open ports on the client
- ✓Temporary address + expiry
- ✓Copy / paste into Winbox
- ✓Revocable session
Hôtel Atlas — Brussels

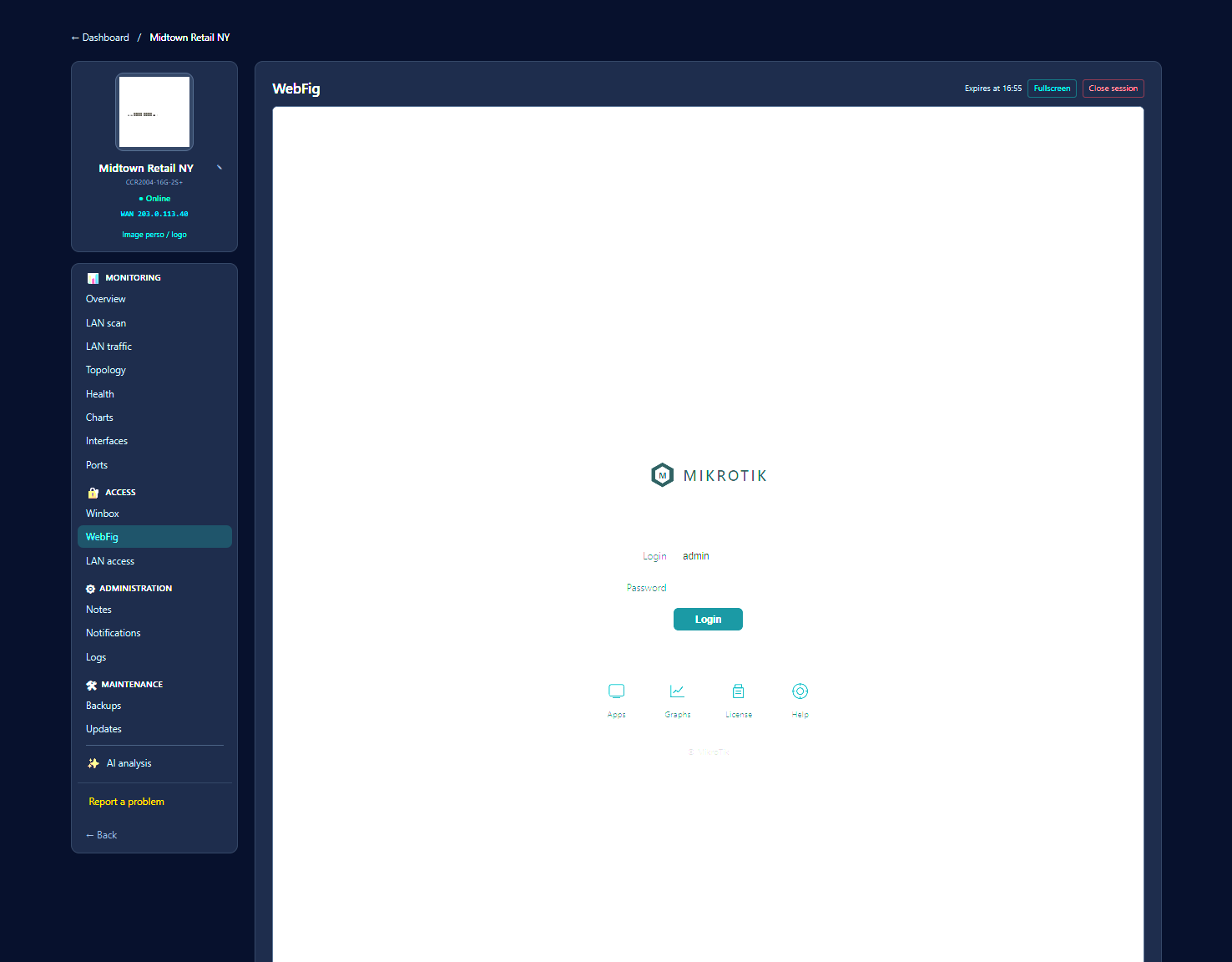

Embedded WebFig
Time-limited WebFig session opened from Routiv (iframe / tunnel), without exposing the router on the Internet.
- ✓Choose duration
- ✓Access only via Routiv
- ✓Encrypted tunnel
- ✓Session close
Hôtel Atlas — Brussels

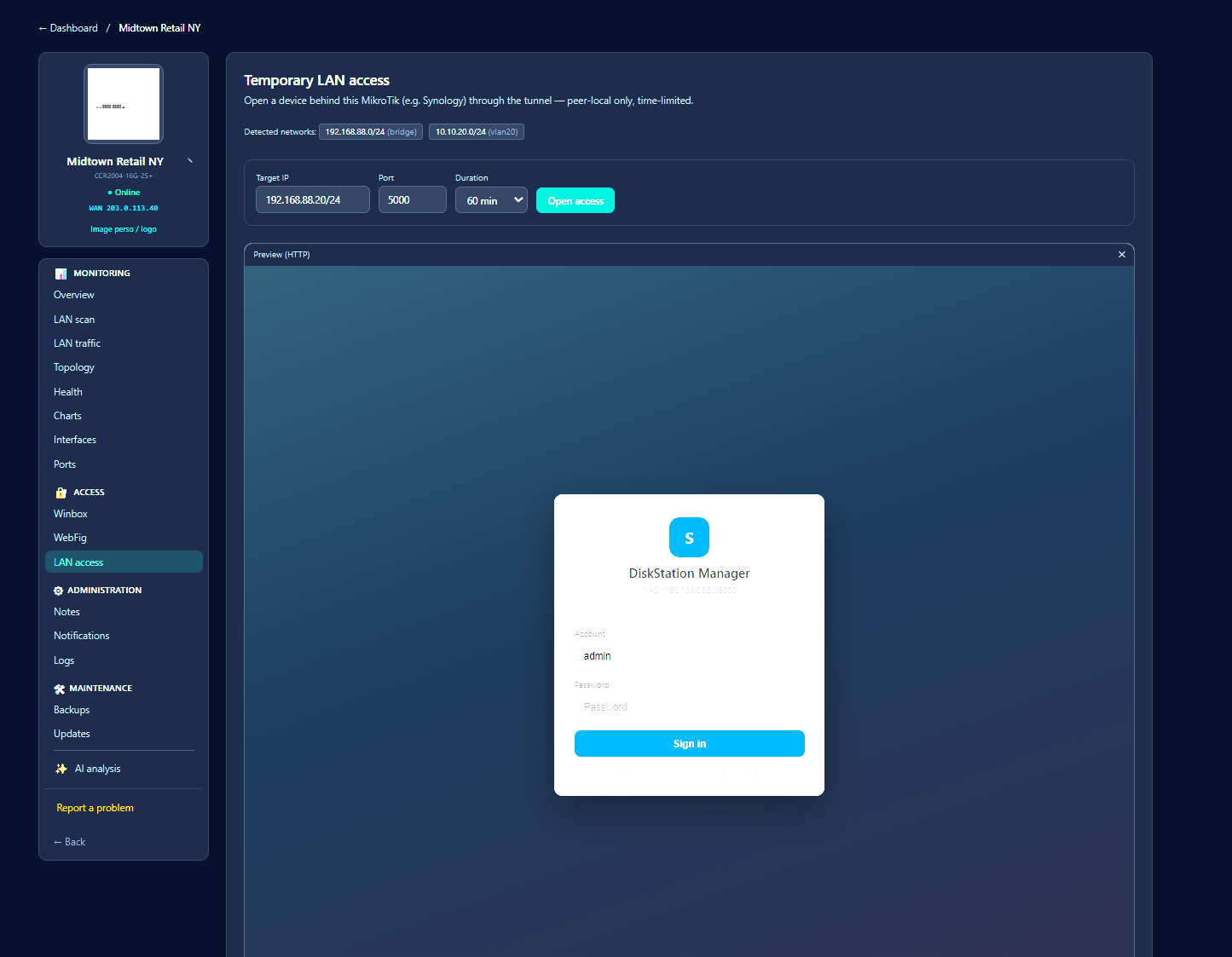

Temporary LAN access
Reach a device behind the MikroTik (NAS, printer, camera…) through the tunnel: target IP, port, duration — peer-local only, time-limited.
- ✓Detected LAN networks (bridge, VLAN…)
- ✓IP + port + duration
- ✓Temporary secured access
- ✓Ideal for support / integrators
Hôtel Atlas — Brussels

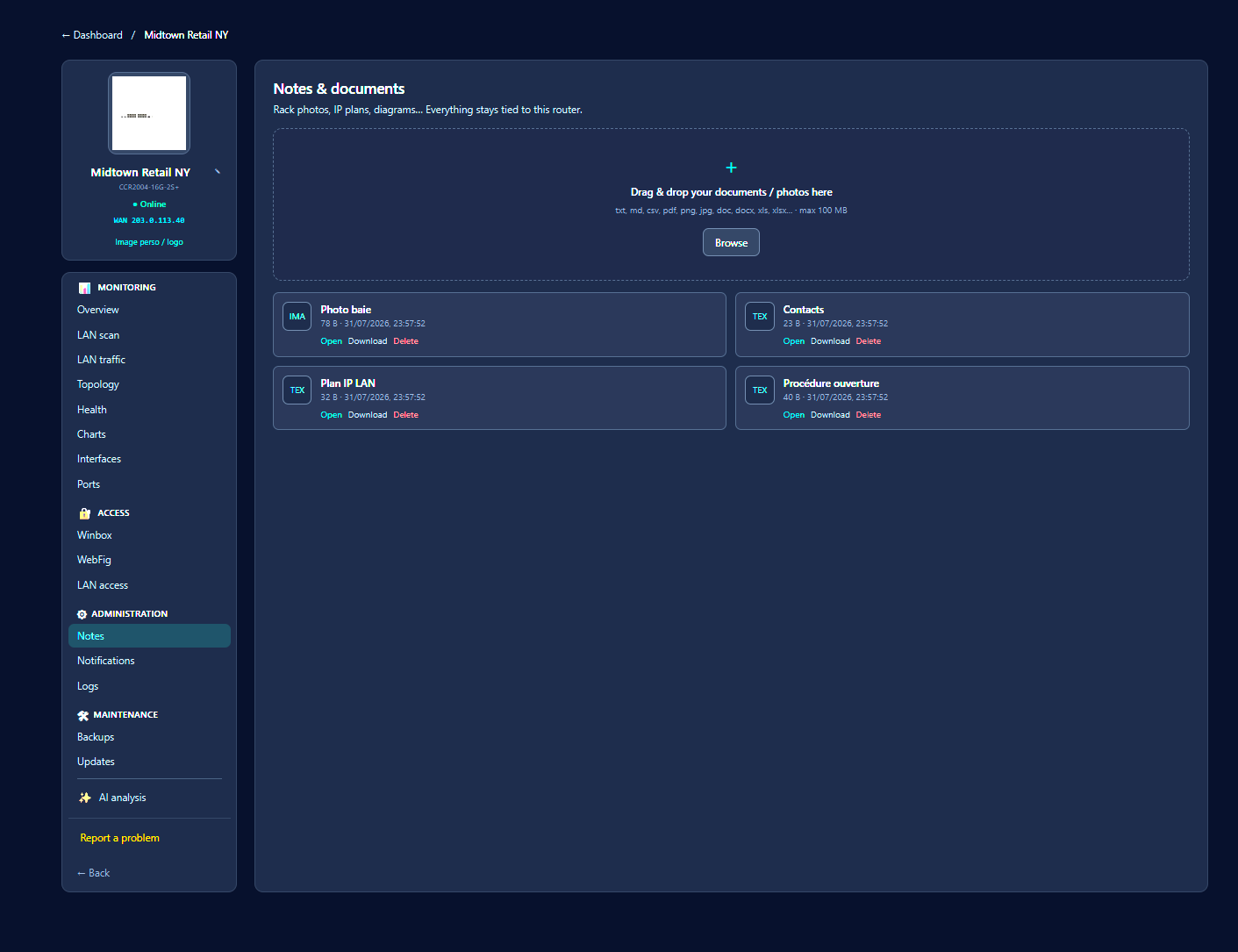

Notes & documents
Rack photos, IP plans, procedures, contacts: files tied to the router (drag & drop, open, download).
- ✓Photos · PDF · text · spreadsheets
- ✓Tied to the router
- ✓Drag & drop up to 100 MB
- ✓Open / download / delete
Hôtel Atlas — Brussels

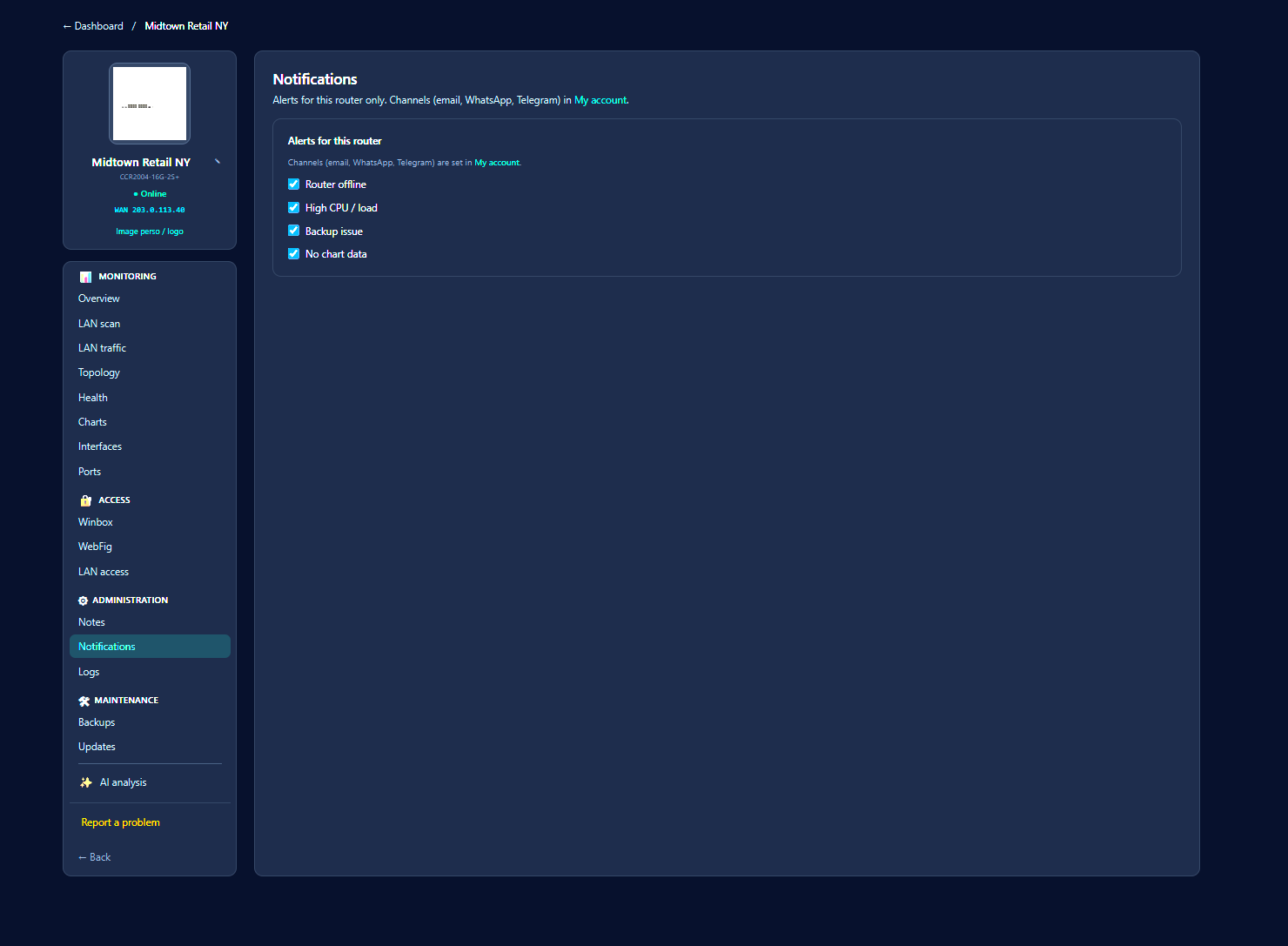

Notifications
Per-router alerts: offline, CPU, backup, missing charts. Email / WhatsApp / Telegram channels in My account.
- ✓Per-device preferences
- ✓Offline · CPU · backup · metrics
- ✓Channels in My account
- ✓Anti-spam (open / recovery)
Hôtel Atlas — Brussels

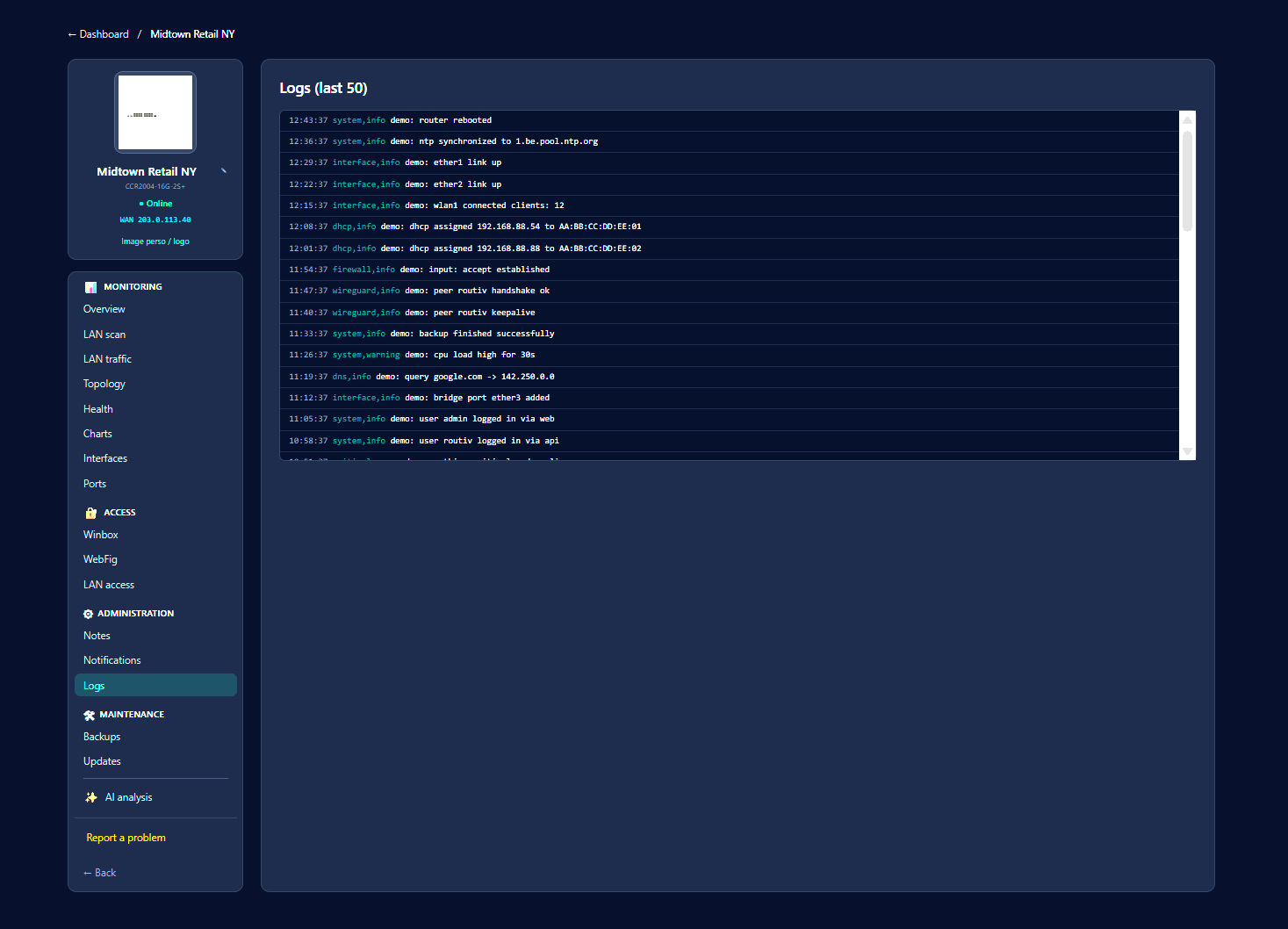

RouterOS logs
Latest system / interface / WireGuard logs pulled from the router for quick diagnostics.
- ✓Last 50 events
- ✓system, interface, wireguard topics…
- ✓RouterOS timestamps
- ✓No Winbox required
Hôtel Atlas — Brussels

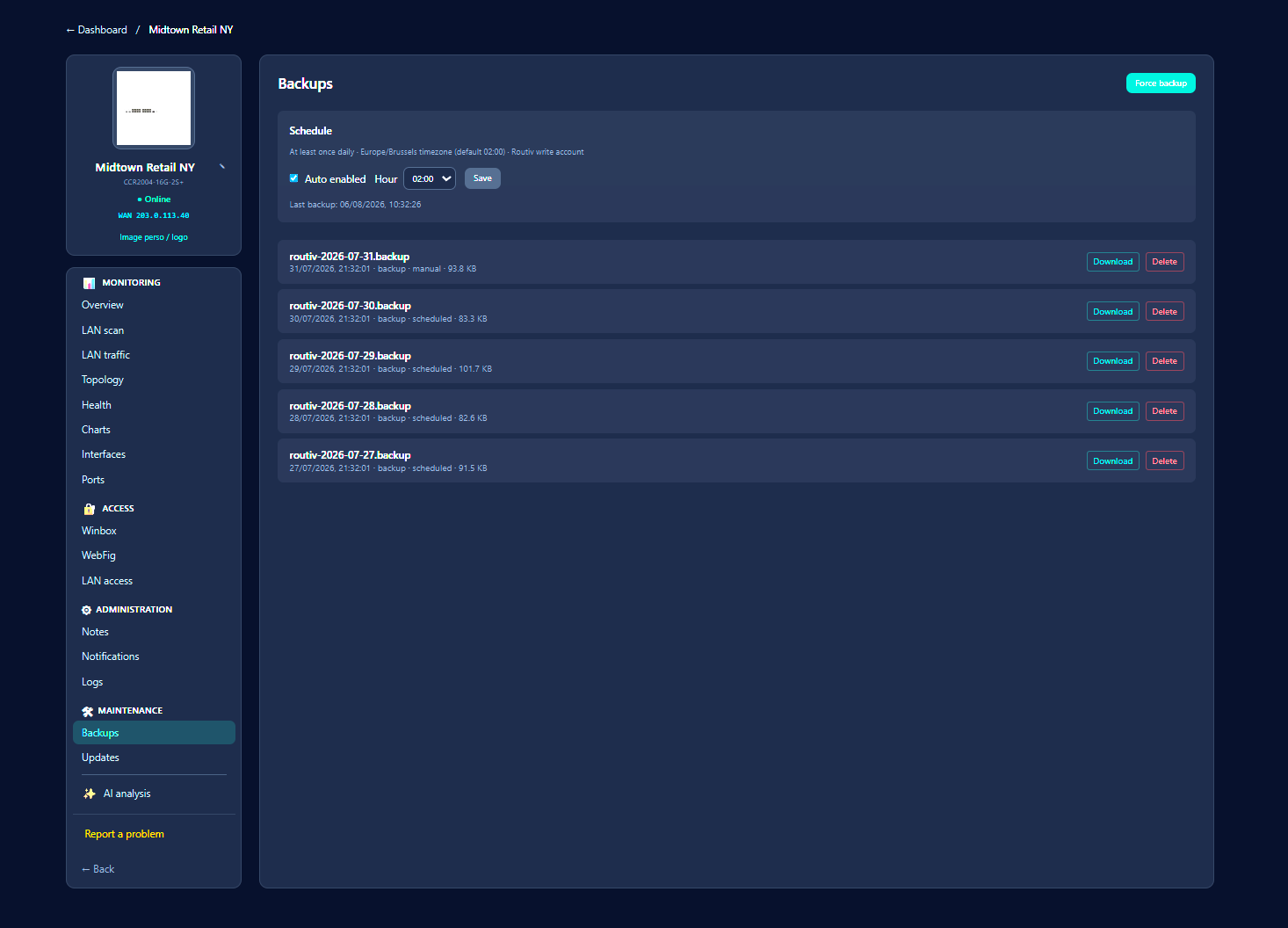

Backups
Daily automatic backup (chosen hour / timezone), force backup, downloadable history (.backup), restore with confirmation.
- ✓Schedule (hour / timezone)
- ✓Force backup
- ✓History + download
- ✓Controlled restore
Hôtel Atlas — Brussels

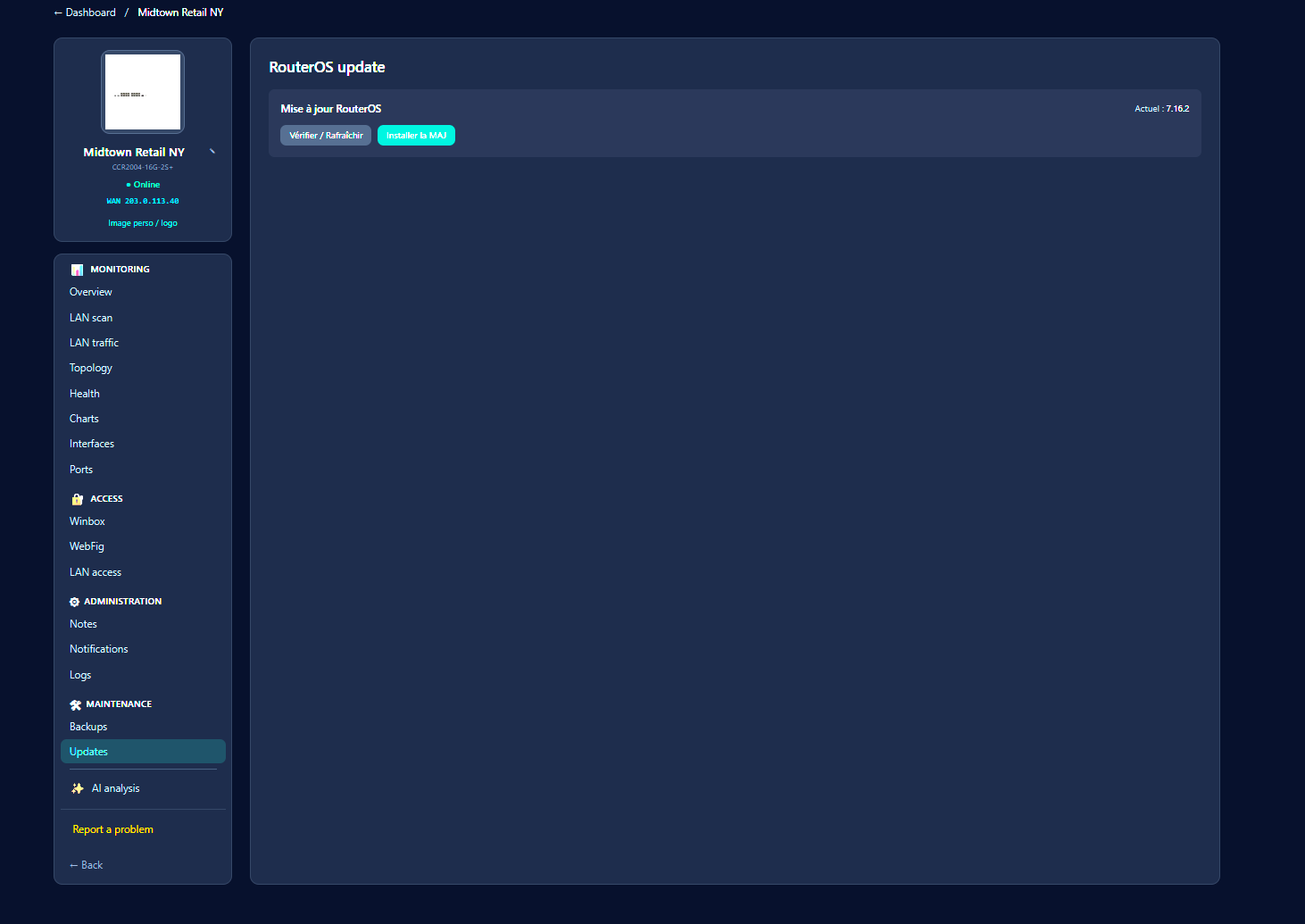

RouterOS updates
Check and install RouterOS updates per device, with current version displayed.
- ✓Check for updates
- ✓Install update
- ✓Current version visible
- ✓Also bulk from the dashboard
Hôtel Atlas — Brussels

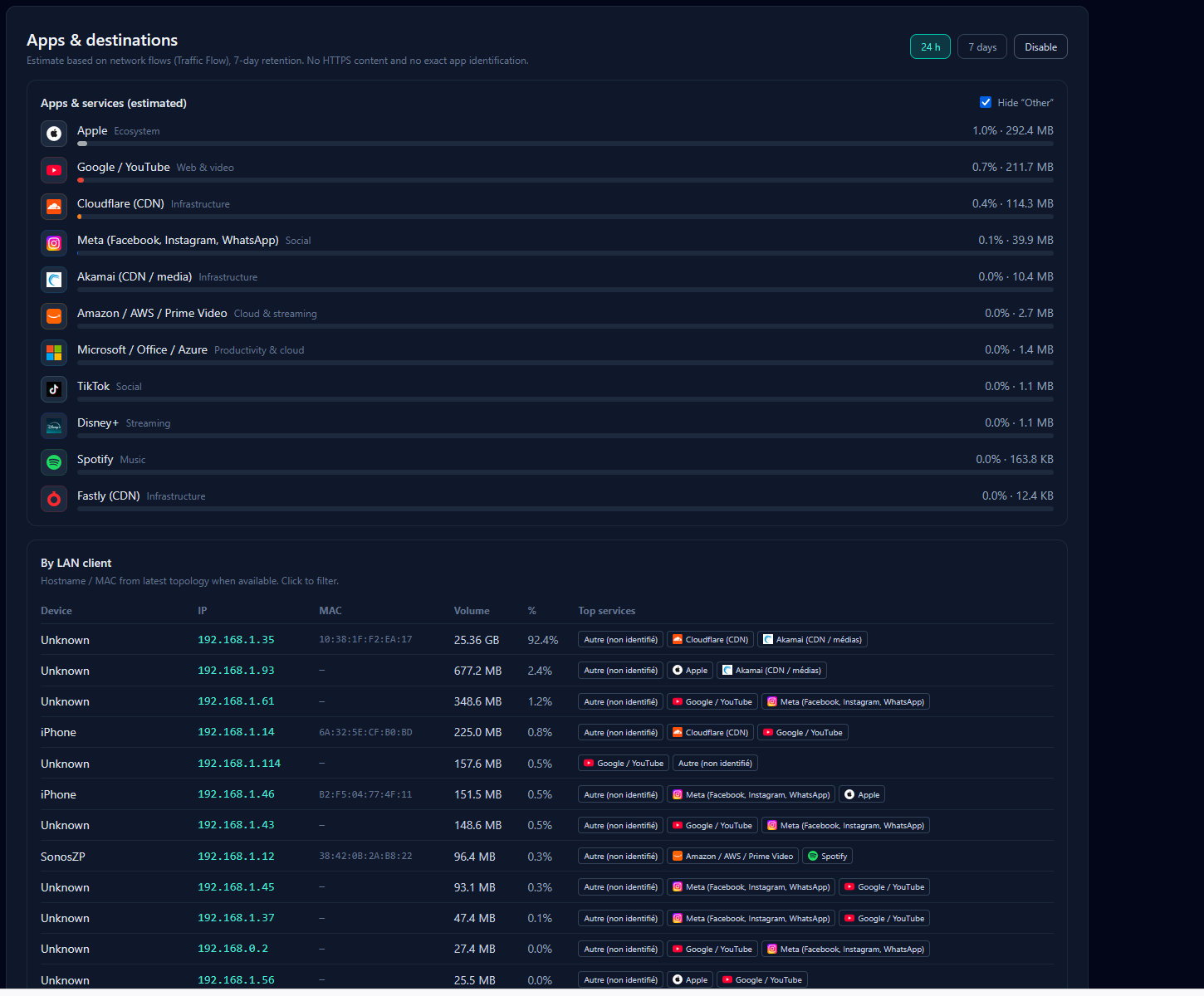

LAN traffic & apps
Estimated apps and services (Traffic Flow), volume per LAN client (IP / MAC / hostname), 24 h or 7-day windows — diagnose slowness without opening Wireshark.
- ✓Estimated apps & services (no HTTPS payload)
- ✓Volume and % per LAN client
- ✓Top services per device
- ✓24 h / 7-day windows
- ✓Pairs well with topology
Hôtel Atlas — Brussels

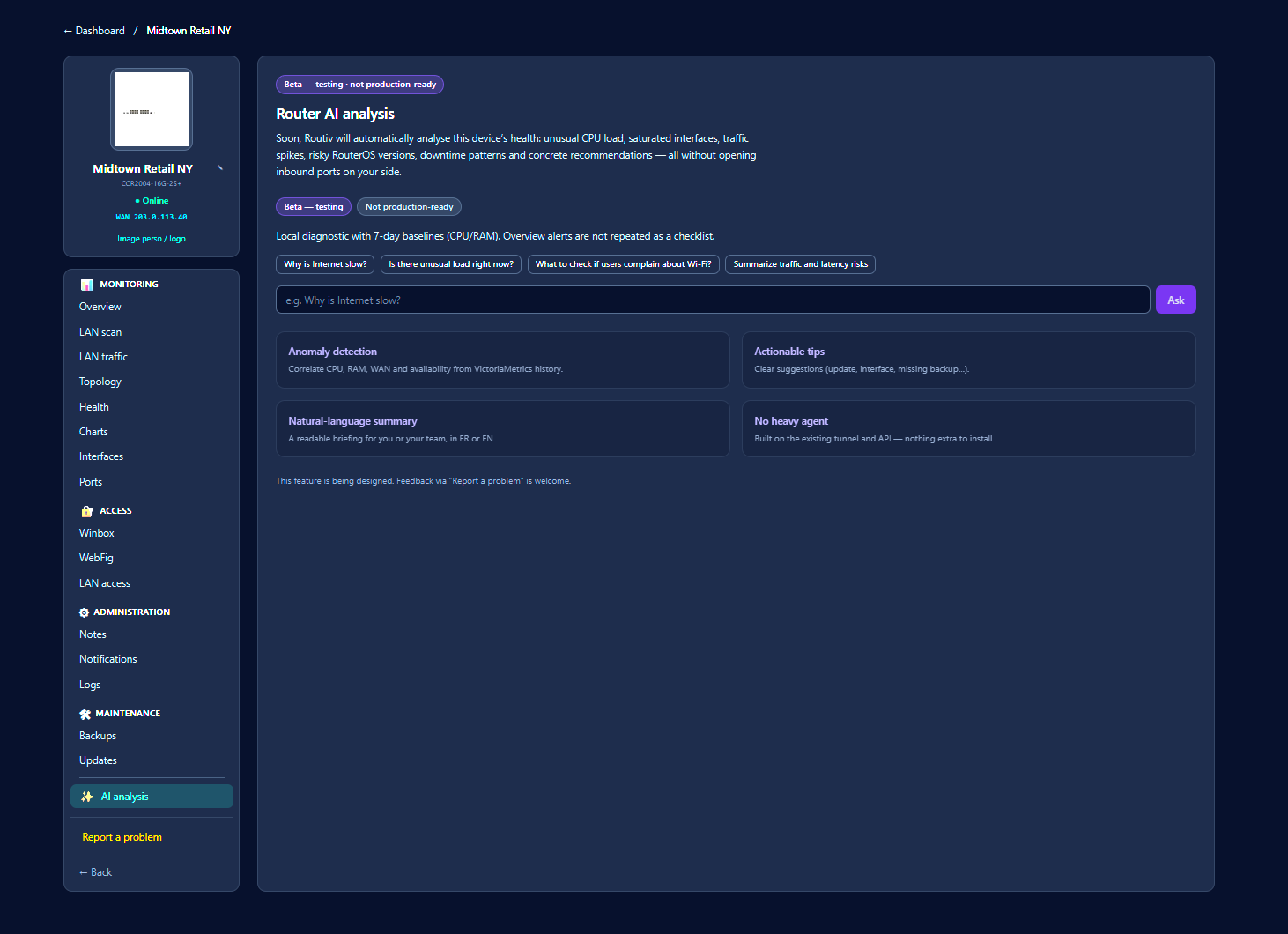

AI analysis (beta)
Assisted router diagnostics: guided questions, CPU / RAM / WAN / availability correlation, actionable tips — no heavy agent to install. Feature still being stabilized.
- ✓Guided questions (slowness, Wi‑Fi, load…)
- ✓Metrics & availability correlation
- ✓Actionable tips
- ✓FR / EN
- ✓Beta — feedback welcome
Horizon Retail / Nordic Fiber

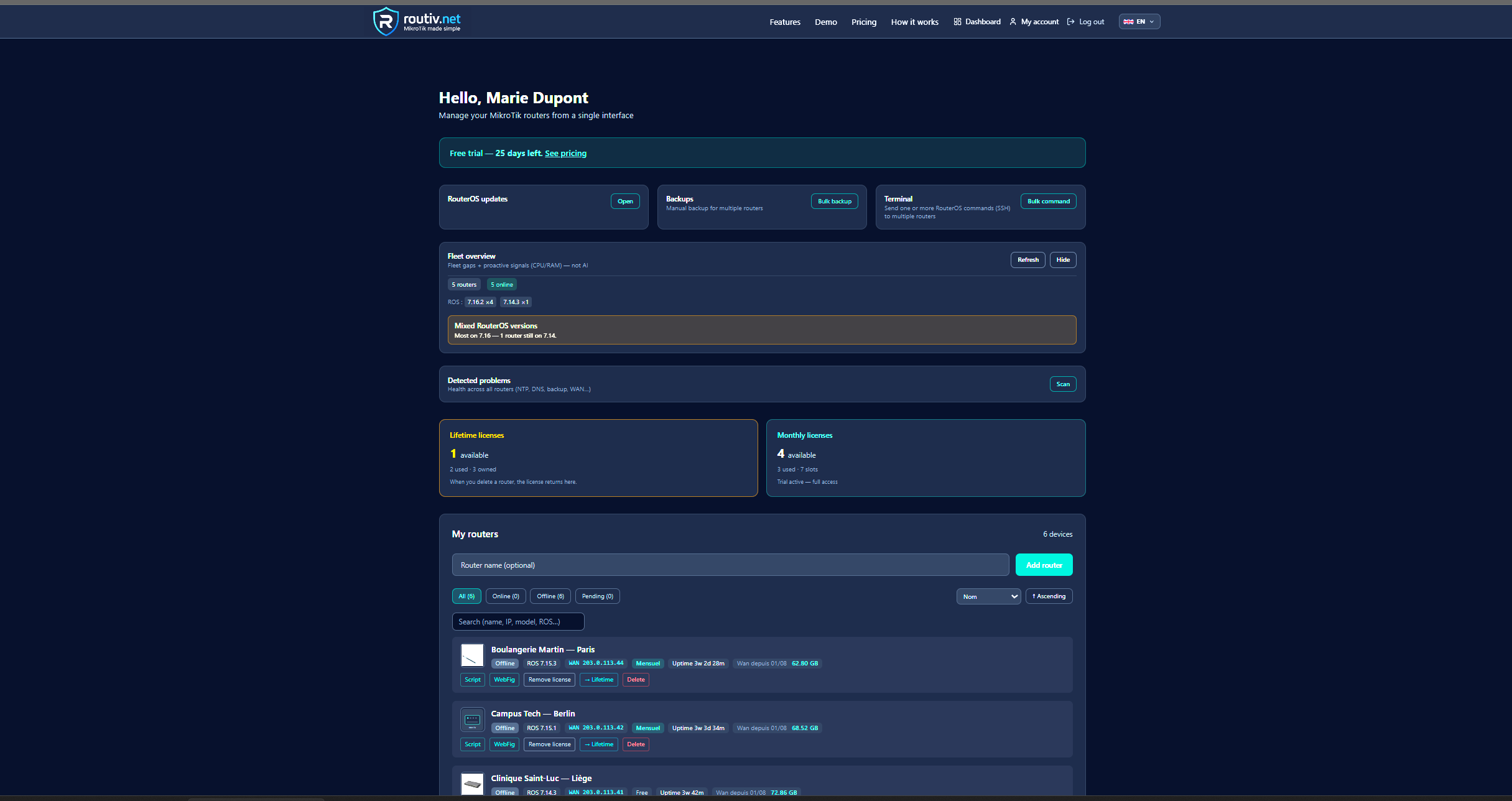

Multi-site dashboard
Whole fleet: Online/Offline filters, Lifetime/Monthly licenses, uptime, WAN usage. Fleet actions: bulk RouterOS updates, backup all routers, multi-device terminal, problem scan (NTP, DNS, backup, WAN…), AI analysis.
- ✓Filters, sort, search
- ✓Lifetime & monthly pools
- ✓Backup all routers
- ✓Bulk RouterOS updates
- ✓Bulk terminal (SSH)
- ✓Problem detection + AI analysis
Ready to manage your fleet?
30-day trial · up to 50 routers · no credit card
